The Logic HE Chartwell inset gas fire boasts superb performance and incredible high efficiency. It is designed to be fitted into a standard fireplace opening and is available in a choice of Matt Black, Highlight Polished, Polished Brass-effect and Polished Chrome-effect. The Chartwell’s classical styling is reminiscent of a traditional fireplace, and is guaranteed to create the perfect look and feel in any room.
The convector firebox on the Logic HE draws cool room air into the bottom of the convection chamber. The cool air is warmed as it passes over the hot surfaces of the chamber and the hot air is then emitted back into the room via the top convection slot. Maximum heat is radiated into the room via the virtually invisible glass front. This results in a high heat output of up to 4.10kW and amazing high efficiency of up to 89%!
The standard Manual Controls provides an easy to use system that allows for ignition, extinguish & full flame control all from a simple single control handle. To maintain the aesthetic appeal of your fire, the controls are discretely located behind the frame front at the bottom of the fire & can be accessed with ease.
Gazco’s new innovative slide system has a subtly designed, ergonomic lever that is situated to the top right hand side of the fire’s frame for easy access. the new slide offers complete and convenient control over the fire, including ignition and extinguish along with flame height and corresponding heat levels, allowing you to achieve the warmth and ambiance you desire with minimal bending. Slide Control Logic fires are available with a specific selection of frame styling options, please see table below for details.
For the ultimate in comfort, opt for the Remote Control version. Once the pilot light has been ignited manually you can use Gazco’s sequential Remote Control to vary the flame height and heat output from the comfort of your sofa, achieving the perfect ambiance.
A new log effect option is now offered on the slide or remote control version only.
Logic HE fires now feature non-reflective glass for a beautiful and uninterrupted experience of the flames within

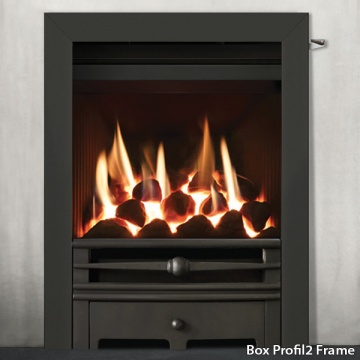

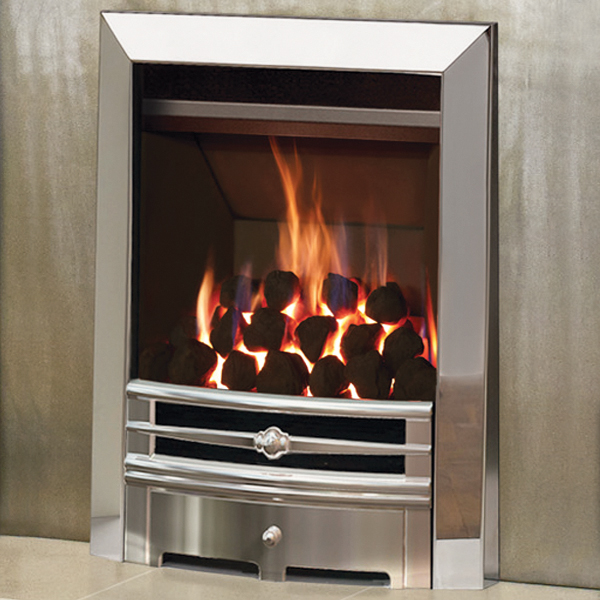

Coals Fuel Effect |

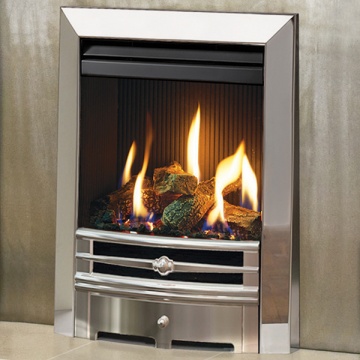

Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Chartwell Convector Gas Fire can be found below.
| Fuel | Natural Gas or LPG |
| Direct Heat Output
(Manual Control) | Coal - Natural Gas: 4.10kW / LPG: 4.00kW |
| Direct Heat Output
(Slide Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW |
| Direct Heat Output
(Remote Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW
Log - Natural Gas: 3.90kW / LPG: 3.90kW |
| Efficiency | Coal: 89% / Log: 84% |
| Flue Requirement | Class 1 & Class 2 |
| Colour/Finish | Matt Black / Polished Brass Effect / Polished Steel Effect / Brushed Steel Effect |
| Fuel Effect | Coals or Logs with Slide or Remote control only) |
| Control | Manual / Slide / Remote |
| Gas Connection Size | 8mm |
| Warranty | 5 Years (extended warranty) |
The dimensions (width, height, depth) of the Gazco Logic HE Chartwell Convector Gas Fire are listed here.
Logic HE Conventional Flue Gas Fire Opening Dimension Requirements
Width: 410mm
Height: 560mm
Depth: 250mm (350mm on Log effect model)
Overall Trim Size: 503mm wide x 605mm high
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.
Standard gas fires such as the Gazco Logic HE Chartwell gas fire will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Logic HE Chartwell gas fire is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
