A slimline fire that is well suited for installation within a fireplace and into all flue types including shallow, Class 2 Pre-Cast flues subject to adequate inset depth being available to accommodate the fires 122mm (5") depth.
The Eko 3020 incorporates a cleverly designed heat exchanger that provides gentle, convected warmth and additional heat output at no extra running cost. Detachable decorative mirror interior side panels are also included to reflect the stunning flame picture and create the illusion of a full-depth effect fuel bed. Of course, if you're looking for a simple black appearance then these can be removed.

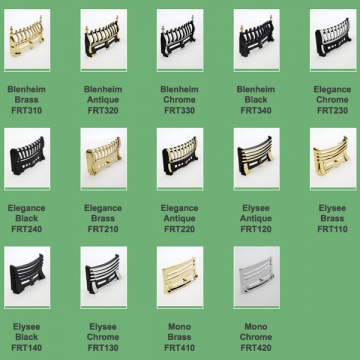

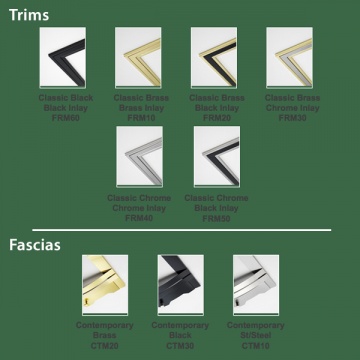

An elegant choice of exclusive trim and fret options allow you to adapt the fire to your exact requirements to ensure perfect compatibility within your existing décor. Alternatively, you may wish to remove the need of a separate trim and fret and opt for a contemporary one piece fascia frame (as shown in main image). These sleek fascias are available in three finishes and are a popular choice when combining with modern fireplaces.
The standard model of the Eko 3020 is operated by manual controls discreetly located at the bottom of the fire. An upgradable remote control system is also available which allows for remote operation of the flame height once the pilot light has been lit.

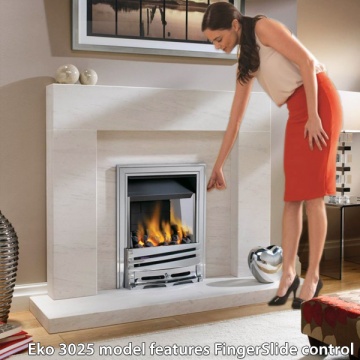

The Eko 3025 features a simple and discreet high level slide control mechanism to simplify operation. Hold the lever down to ignite the fire and then slide the lever up & down to adjust the flame height. It removes the need to bend right down to operate the fire making it an especially popular feature for elderly users.
Impressive radiant and convected heat output of up to 4.1kW with open-fronted flames dancing over a coal or pebble effect fuel bed.
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Ekofires 3020 / 3025 Gas Fire can be found below.
| Fire Type | Slimline Convector |
| Gas Type | Natural Gas |
| Efficiency | 67% |
| Control Type | 3020 - Manual or Remote / 3025 - FingerSlide |
| Fuel Effect | Coal or Pebble |
| Open or Glass Fronted | Open Fronted |
| Heat Input (Max/Min) Gross | 6.2kW / 3.5kW |
| Heat Output (Max/Min) Gross | 4.1kW / 2.3kW |
| Installation | Inset |
| Air Vent Required | Not Normally Required |
| Safety | Oxygen Depletion Sensor / Flame Failure Device |
| Guarantee | 3 Years |

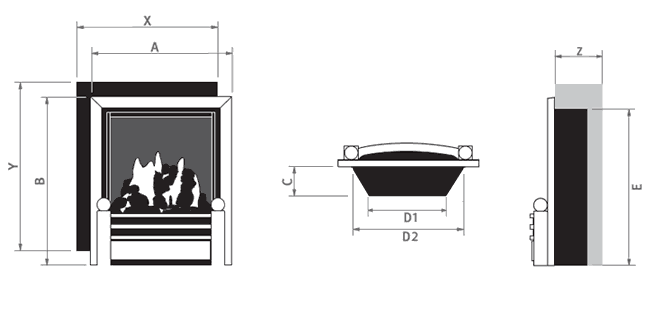

The dimensions (width, height, depth) of the Ekofires 3020 / 3025 Gas Fire are listed here.
| A | B | C | D1 | D2 | E | X | Y | Z |
480mm
(19") | 590mm
(23¼") | 120mm
(4¾") | 235mm
(9¼") | 380mm
(15") | 545mm
(21½") | 380mm (15") Min
440mm (17¼") Max | 540mm (21¼") Min
575mm (22¾") Max | 140mm
(5½") |
