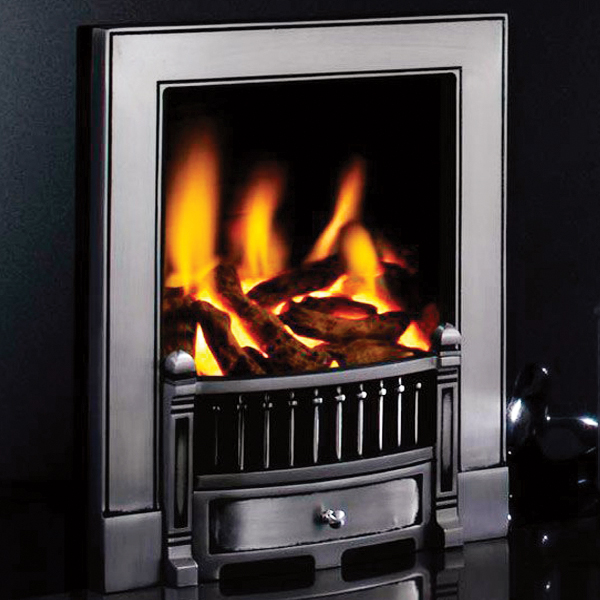

The authentic, full-depth radiant engine on the Eko 3090 boasts an enchanting flame picture with powerful radiating glow and flickering, open flames which emanates from the decorative effect fuelbed. The beautiful cast fascia is inspired by Victorian designs and will provide a striking feature within a vast range of fireplace designs.
The Eko 3090 gas fire has a powerful 3.8kW heat output on high and this is fully adjustable from the low setting of 1.9kW. The real advantage of the full depth radiant fire is that it is very versatile and suitable for use in with Class 1 (real chimney) or Class 2 (5" pre-fabricated) flues subject to adequate recess depth (200mm).
As with all the models in the Ekofires range, safety is paramount. The 3090 & 3095 include tow levels of safety; An Oxygen Depletion Sensor (ODS) and a Flame Failure Device (FFD). These features constantly analyse the performance of the fire and in the unlikely event of a problem are able to cut off the gas supply for complete safety and piece of mind.
The standard model of this stylish fire is the Eko 3090 which is operated by manual rotary controls hidden behind the moveable fret drawer at the base of the appliance. The Eko 3095 features a simple and discreet Slide control lever at the top, right hand side of the fire which gives you total control of the on/off and flame height adjustment without the need to bend right down.
The vast fascia is available in a natural polished cast finish or black. Coal, pebble or log fuel effect options can also be selected.
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Ekofires 3090 / 3095 Gas Fire can be found below.
| Fire Type | Full Depth Radiant |
| Gas Type | Natural Gas |
| Efficiency | 55% |
| Control Type | 3090 - Manual or Remote / 3095 - FingerSlide |
| Fuel Effect | Coal / Pebble / Log |
| Open or Glass Fronted | Open Fronted |
| Heat Input (Max/Min) Gross | 6.8kW / 3.5kW |
| Heat Output (Max/Min) Gross | 3.8kW / 1.9kW |
| Installation | Inset |
| Air Vent Required | Not Normally Required |
| Safety | Oxygen Depletion Sensor / Flame Failure Device |
| Guarantee | 3 Years |
The dimensions (width, height, depth) of the Ekofires 3090 / 3095 Gas Fire are listed here.
| A | B | C | D1 | D2 | E | X | Y | Z |
485mm
(19") | 595mm
(23½") | 180mm
(7") | 245mm
(7") | 375mm
(14¾") | 565mm
(22¼") | 375mm (14¾") Min
450mm (17¾") Max | 540mm (21¼") Min
575mm (22¾") Max | 200mm
(8") |
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.
Standard sized fires such as the Eko 3090 & 3095 will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Eko 3090 / 3095 Gas Fire is approximately 7-10 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
