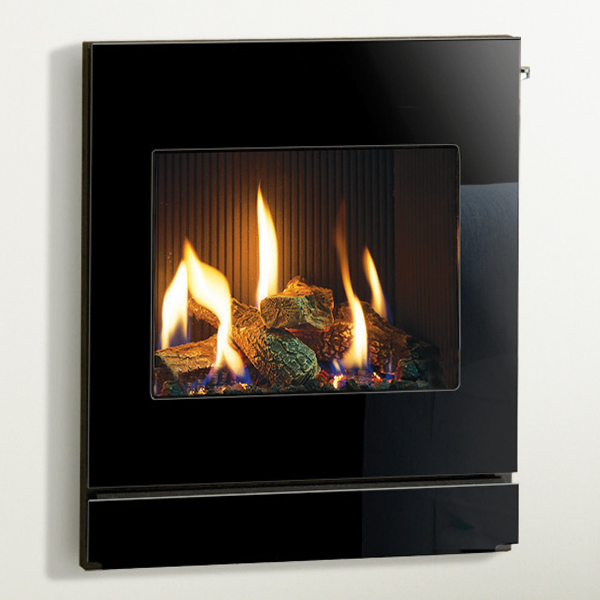

This stunning fascia option from Gazco compliments the Gazco Logic HE balanced flue gas fire perfectly. The Designio2 fascia is a four-sided frame allowing you to fit the fire into a standard fireplace on a hearth or raised up on the wall.
The Gazco Logic HE Designio2 balanced flue is offered with a selection of control options to suit your lifestyle. Standard is the manual controls which are discreetly hidden behind the fascia at the bottom of the appliance. The fascia opens to allow easy access to the controls.
A new addition to this model is a slide control version which allows you full control of the fire from a lever located at the top, right hand side of the fire. A remote control option gives you the ultimate of control including thermostatic control from the comfort of your favourite armchair.
Designed for properties without the chimney or flue, the balanced flue Logic HE Designio2 is supplied with a rear exit balanced flue kit which vents the fumes produced by the fire horizontally through an external wall. In most house types, this fire is suitable for installation on to a flat, external wall without the need to build out.
Superb energy efficiency rating of 86% with heat output of up to 3.40kW.
Coal Fuel Effect |
Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Designio2 Balanced Flue Gas Fire can be found below.
| Fuel | Natural Gas or LPG |
| Direct Heat Output
(Manual Control) | Coal - Natural Gas: 3.10kW / LPG: 3.20kW |
| Direct Heat Output
(Slide Control) | Coal - Natural Gas: 3.20kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Direct Heat Output
(Remote Control) | Coal - Natural Gas: 3.30kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Efficiency | 86% |
| Flue Requirement | No Chimney or Flue Needed (Installation against a flat, external wall) |
| Colour/Finish | Graphite / Black Glass |
| Fuel Effect | Coals or Logs with Slide or Remote control only |
| Control | Manual / Slide / Remote |
| Gas Connection Size | 8mm |
| Warranty | 5 Years (extended warranty) |
The dimensions (width, height, depth) of the Gazco Logic HE Designio2 Balanced Flue Gas Fire are listed here.
Overall Designio2 Fascia Size: 519mm wide x 606mm high x 40mm deep
Log fuel effect model has an increased engine depth from 160mm to 223mm
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.
Standard gas fires such as the Gazco Logic HE Designio2 balanced flue gas fire will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Logic HE Designio2 balanced flue is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
