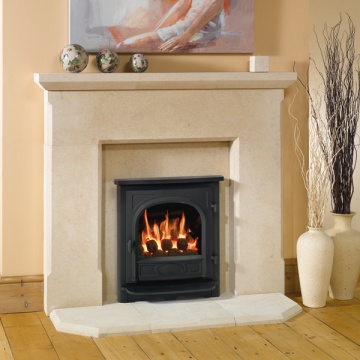

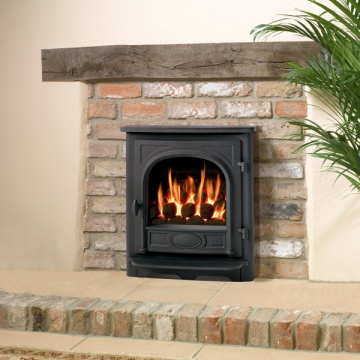

The Stockton fascia offers a charming, traditional feel and will compliment any standard fireplace opening. It has been designed to simulate a real stove giving the impression of a opening door and ashlip. The fascia is combined here with the Logic HE balanced flue fire to create a market leading gas fire which is packed full of the very latest technology for heating performance and high efficiency.
Designed for properties without a chimney or flue, the Gazco Logic HE Stockton balanced flue is designed for installation on a external wall. Rather than the fumes going up a flue as on a conventional flue gas fire, the balanced flue version includes a horizontal flue kit that attaches to the back of the fire and vents the fumes horizontally through the wall.
With a slimline inset depth of only 160mm on the coal and white stones fuel effect versions, this fire is suitable for installation on to a standard, external cavity wall without the need to build out a wall to accommodate the appliance depth as needed on deeper models. The Log effect models have a deeper fuel bed of 230mm (9").

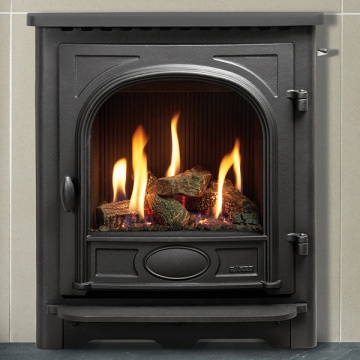

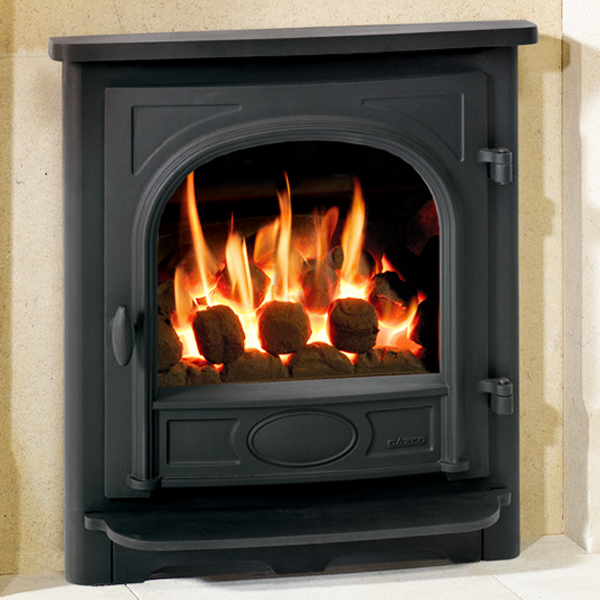

A ultra-realistic coal or log effect fuel bed produces a beautiful ambient glow and flickering flames. The 3.40kW heat output is controlled by manual controls located at the bottom of the fire. A slide or fully remote control system is also offered as a cost option. Remarkable high efficiency of up to 86%. The log effect fuel bed is only available on the Slide or Remote control models.
Coal Fuel Effect |
Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Stockton Balanced Flue Gas Fire can be found below.
| Fuel | Natural Gas or LPG |
| Direct Heat Output
(Manual Control) | Coal - Natural Gas: 3.10kW / LPG: 3.20kW |
| Direct Heat Output
(Slide Control) | Coal - Natural Gas: 3.20kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Direct Heat Output
(Remote Control) | Coal - Natural Gas: 3.30kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Efficiency | 86% |
| Flue Requirement | No Chimney or Flue Needed (Installation against a flat, external wall) |
| Colour/Finish | Black |
| Fuel Effect | Coals or Logs (Logs with Slide or Remote control only) |
| Control | Manual / Slide / Remote |
| Gas Connection Size | 8mm |
| Warranty | 5 Years (extended warranty) |

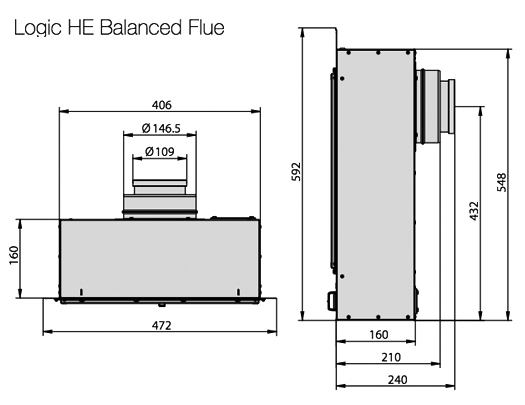

The dimensions (width, height, depth) of the Gazco Logic HE Stockton Balanced Flue Gas Fire are listed here.
Overall Stockton Fascia Size: 529mm wide x 601mm high x 128mm deep
Log fuel effect model has an increased engine depth from 160mm to 223mm
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.
Standard gas fires such as the Gazco Logic HE Stockton balanced flue gas fire will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Gazco Logic HE Stockton balanced flue is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
