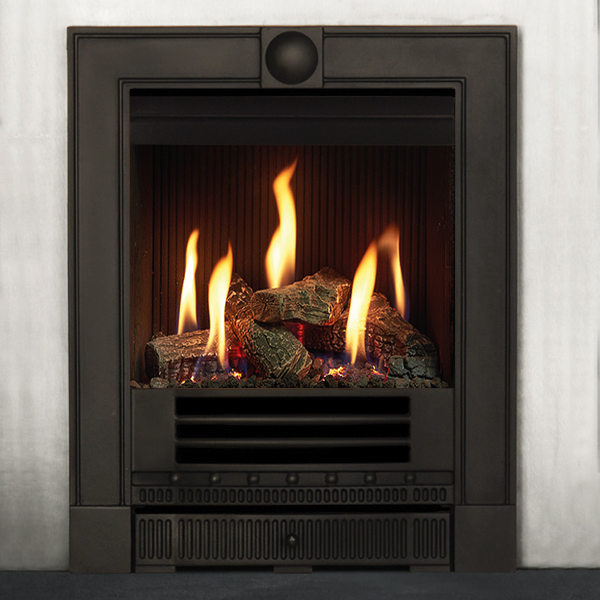

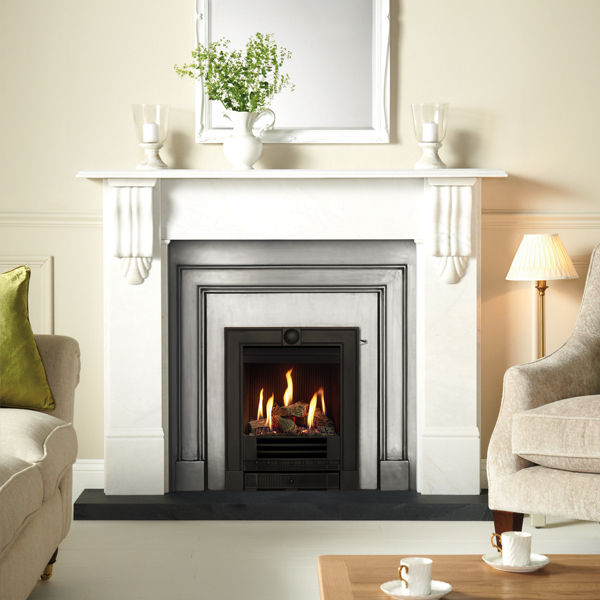

With a substantial cast fascia in matt black, the Gazco Logic HE Winchester will create a striking centrepiece to your fireplace. Designed to fit into a standard fireplace opening, the design works well in a variety of fireplace designs and is now available with the addition of a slide control version which gives you total control of the fire without the need to bend down.
This high efficiency, glass-fronted gas fire offers a real alternative to open fire heating with a gorgeous, glowing coal fuel bed or for a classic twist, there is an authentic log fuel bed option.
4.10kW heat output make the Gazco Logic HE Winchester gas fire perfect for average to larger room sizes. Convection system draws cold air from the room and passes it through the fire chamber, which is then pushed back into the room as hot air. Fantastic high efficiency of up to 89%.
Providing an enhanced view of the flames, a non-reflective glass front is now supplied as standard*.
An attractive log effect fuel bed is now available which has a deeper overall depth and is only available with slide or remote control operation.
This latest Mk3 version model now features non-reflective glass for crystal clear viewing
Coal Fuel Effect | Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Winchester Convector Gas Fire can be found below.
Fuel | Natural Gas or LPG |
Direct Heat Output (Manual Control) | Coal - Natural Gas: 4.10kW / LPG: 4.00kW |
Direct Heat Output (Slide Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW Log - Natural Gas: 3.90kW / LPG: 3.90kW |
Direct Heat Output (Remote Control) | Coal - Natural Gas: 4.10kW / LPG: 3.90kW Log - Natural Gas: 3.90kW / LPG: 3.90kW |
Efficiency | Coal: 89% / Log: 84% |
Flue Requirement | Class 1 & Class 2 |
Colour/Finish | Matt Black |
Fuel Effect | Coals or Logs with Slide or Remote control only |
Control | Manual / Slide / Remote |
Gas Connection Size | 8mm |
Warranty | 5 Years (extended warranty) |
The dimensions (width, height, depth) of the Gazco Logic HE Winchester Convector Gas Fire are listed here.
Logic HE Conventional Flue Gas Fire Opening Dimension Requirements
Width: 410mm
Height: 560mm
Depth: 250mm (350mm on Log effect model)
Overall Winchester Fascia Size: 508mm wide x 619mm high x 55mm deep
