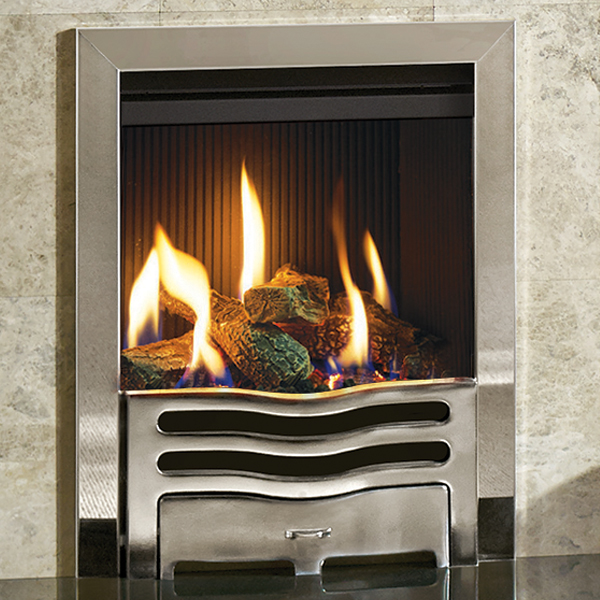

The contemporary Gazco Wave balanced flue gas fire uses smooth curves to great visual effect as the minimalist styling sits in harmony with the angular frames surrounding it. The ‘Wave’ brings a touch of sleek sophistication to any modern or contemporary setting.
The Logic HE Wave balanced flue is available in a choice of Matt Black, Highlight Polished, Polished Brass-effect and Polished Chrome-effect. This highly advanced, glass-fronted fire is a standard sized model designed to fit into all standard fireplace openings.

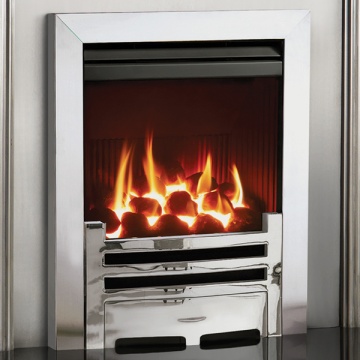

With a inset depth of 160mm (coal & white stones), it is ideal for flat wall installations when combined with a suitable fireplace. The design of the Wave fire front makes it well suited to contemporary settings and there is a choice of the Arts trim with its chamfered edge or the plain Box Profil trim.
Supplied with a rear exit balanced flue kit as standard, the Gazco Logic HE Wave balanced flue is designed for installation on to an external wall. As opposed to the fumes going up a flue as they would on a conventional flue model, the balanced flue kit expels the fumes horizontally through the wall. No electricity supply is needed.
Offered with manual controls located at the bottom of the fire. Option to upgrade to a slide control model with lever located conveniently at the top side of the trim or as a sequential remote control.
Superior energy efficiency rating of 86% with a maximum heat output of up to 3.30kW. A realistic Log effect fuel bed is now available on the Slide and Remote control versions. The Log effect models have a deeper fuel bed of 230mm (9").
Coal Fuel Effect |
Log Fuel Effect |
Download Instructions
(Manufacturers instructions are offered as a guide only and may not always be the latest version)
Key features of the Gazco Logic HE Wave Balanced Flue Gas Fire can be found below.
| Fuel | Natural Gas or LPG |
| Direct Heat Output
(Manual Control) | Coal - Natural Gas: 3.10kW / LPG: 3.20kW |
| Direct Heat Output
(Slide Control) | Coal - Natural Gas: 3.20kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Direct Heat Output
(Remote Control) | Coal - Natural Gas: 3.30kW / LPG: 3.20kW
Log - Natural Gas: 3.40kW / LPG: 3.30kW |
| Efficiency | 86% |
| Flue Requirement | No Chimney or Flue Needed (Installation against a flat, external wall) |
| Colour/Finish | Matt Black / Polished Brass Effect / Polished Steel Effect / Brushed Steel Effect |
| Fuel Effect | Coals or Logs with Slide or Remote control only |
| Control | Manual / Slide / Remote |
| Gas Connection Size | 8mm |
| Warranty | 5 Years (extended warranty) |
The dimensions (width, height, depth) of the Gazco Logic HE Wave Balanced Flue Gas Fire are listed here.
Overall Trim Size: 503mm wide x 605mm high
Log fuel effect model has an increased engine depth from 160mm to 223mm
Please note: Due to rising freight charges, we are now being forced to charge extra for delivery to certain Scottish postcodes.
Standard gas fires such as the Gazco Logic HE Wave balanced flue gas fire will be delivered using a Premier courier service. We will contact you to book-in a suitable delivery date as soon as we're ready to dispatch your item(s). The courier service we use has a service where they will send you a text message on the morning of the delivery to advise on a 1 hour time slot when your item(s) will arrive.
Current delivery times for the Gazco Logic HE Wave balanced flue is approximately 7 days however, this is dependant on stock levels at time of placing an order. Once an order is placed, we will contact you to advise if there is likely to be any delays on the estimated delivery time.
